QFAP BB C
Top inlet bag filter - Size 10 or 20
- 75 °C
- 16 bar

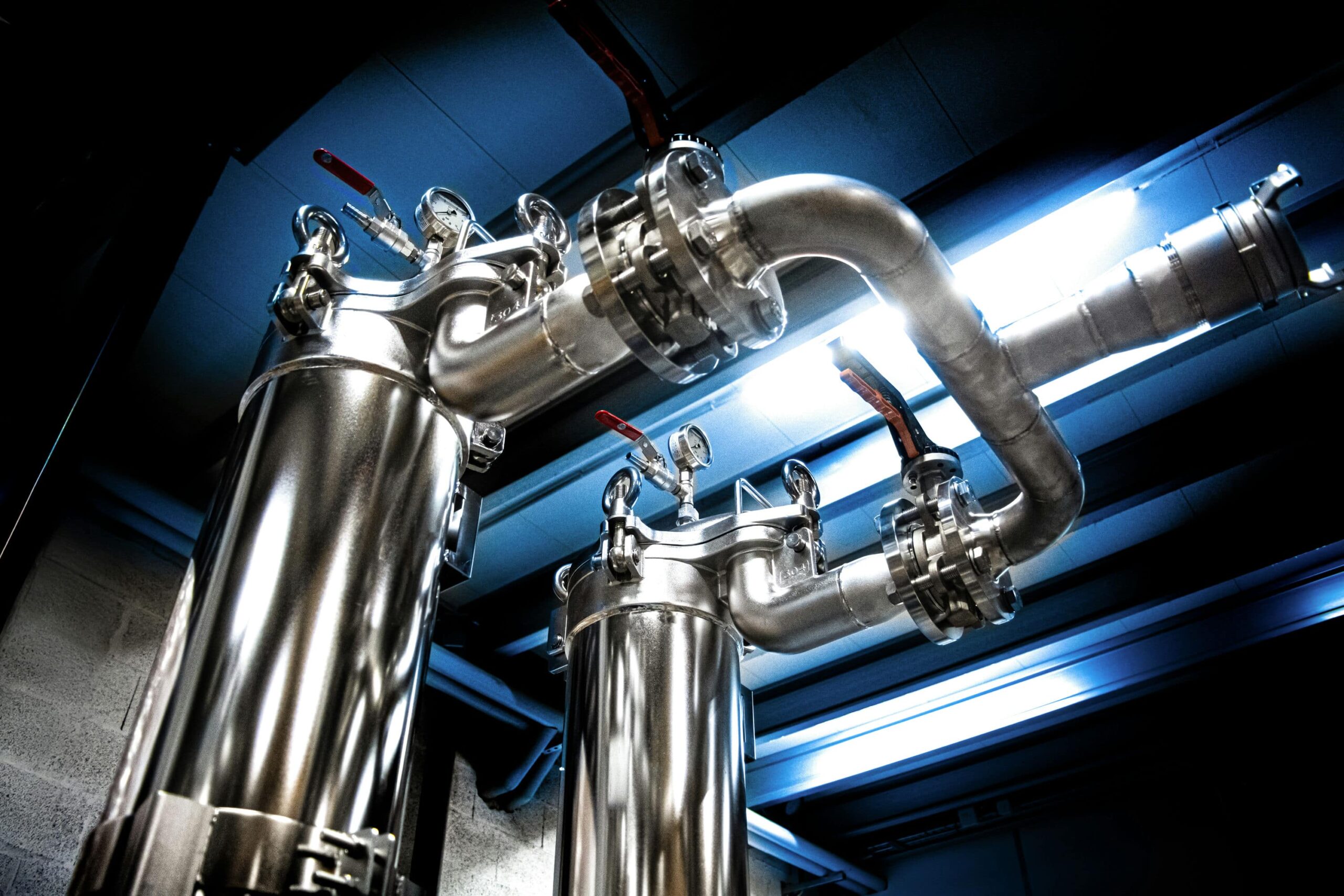

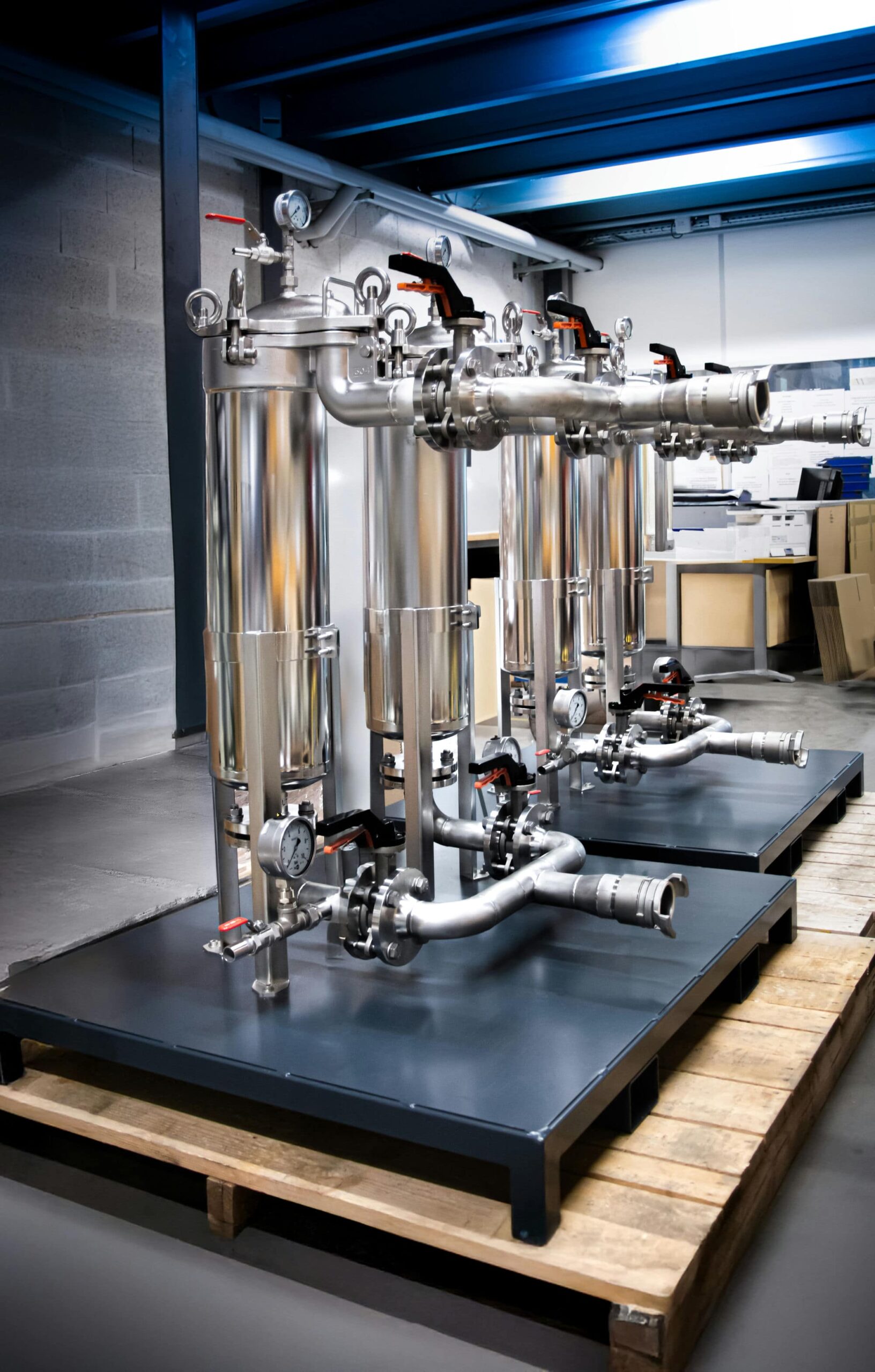

The QFAP-BB-C model from the QUALI-FILTRES range is a bag filter housing for the industrial sector. Its gooseneck design incorporates a tilting bolt closure and DN50 PN16 flanged connections.
The cover has a ¼‘’ BSP connection for fitting a vent valve or pressure gauge. The surface is electropolished for easy cleaning and corrosion resistance. The filter body is available for size 10 and 20 bags with an O-ring or moulded ring (model 2 – code: EFS) for improved sealing.

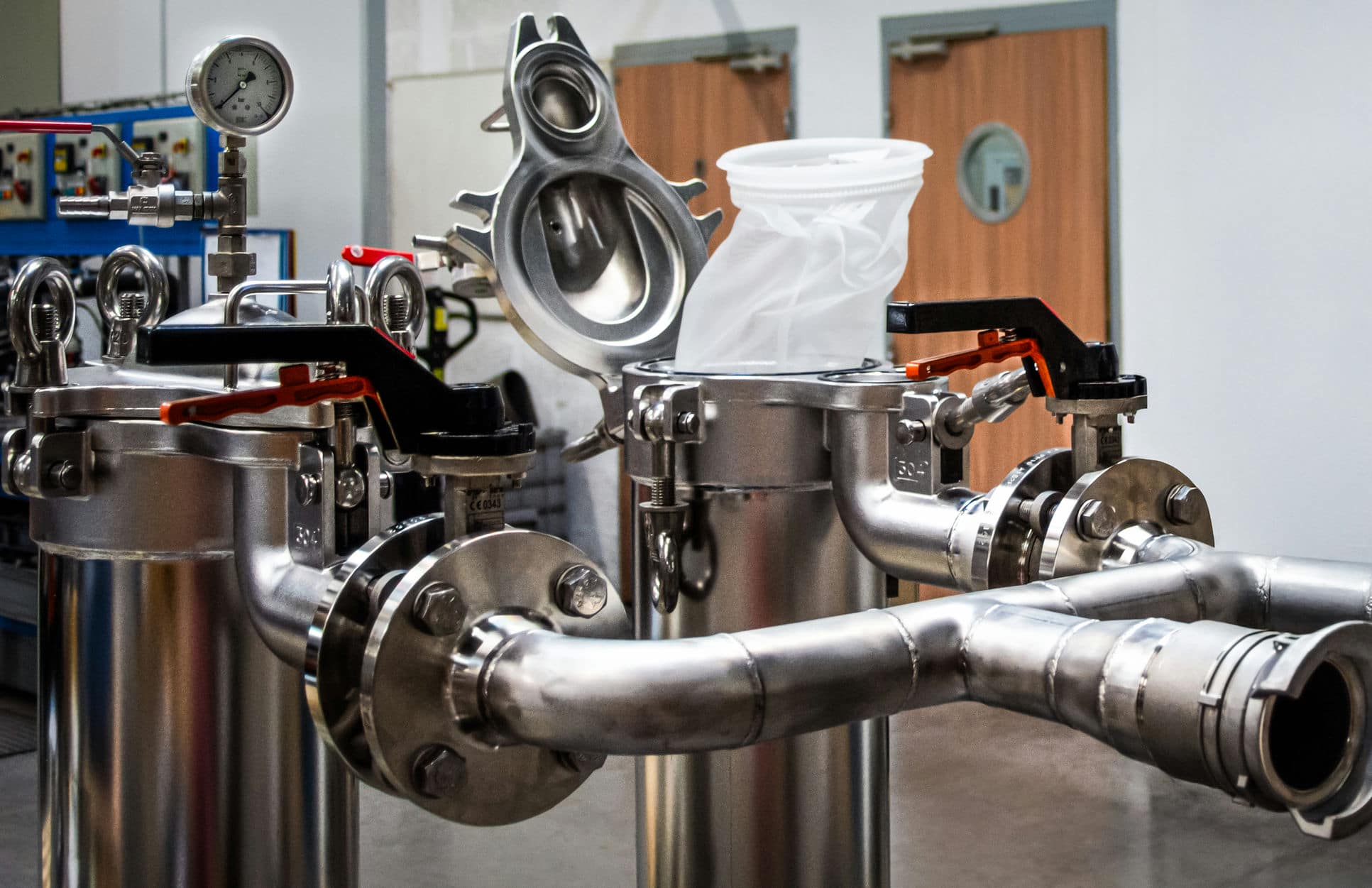

The top inlet requires less space and allows liquids to flow through the lid, improving sealing, reducing product loss and making the filter change procedure cleaner.
Features & Benefits
- Quick-acting tilting bolts (BB) for improved pressure resistance.
- Available in 2 materials: 304 or 316L
- Maximum allowable pressure: 10 or 16 bar
- Size 10 and 20 filter bags with O-ring or moulded ring (model 2 – code: EFS). See Qualipoche sheet
- Height-adjustable feet
- Options available on request: magnetic plug device (with or without wiper) / pressure gauge and vent valve (Ref: SI17755).
- Other end caps and designs available on request
Specifications
- Max temperature (°C)
- 75
- Max pressure (bar)
- 16
- Seals
- EPDM, FPM, NBR
- End
- Flange
- Media height Bag
- size 10, size 20
- On demand design
- Yes
